We offer a range of aeration systems to suit different sizes of reservoirs.
Aeration systems help to maintain healthy levels of dissolved oxygen in water reservoirs, prevent the formation of oxygen-free zones and support natural processes taking place in the sediment.
Aeration is commonly used in breeding ponds, where the concentration of dissolved oxygen often decreases over time. Bottom aeration promotes the circulation, mixing and oxygenation of the water in the reservoir. This significantly inhibits temperature and oxygen stratification and limits the formation of oxygen-free zones at the bottom of the reservoir.
Avoiding an anaerobic environment is important for reducing phosphorus recharge from deposited sediments and improving the living conditions of aquatic organisms. Aeration also results in a reduction of sediment volume and an increase in mineralisation at the bottom of the accumulated biomass. The aeration system supports the microbial decomposition processes that naturally occur in the deposited sediment and improves the functioning and durability of the supplied beneficial bacterial strains. The optimal concentration of dissolved oxygen supports aerobic bacteria that consume the nutrients stored in the sediment.
The optimal number of aerators and their placement depends on the ruggedness of the reservoir and its depth. The diffused air flows from the aerator towards the water surface in a V-shape. The deeper the reservoir, the wider this shape can be, ensuring air circulation in a larger volume of water. For deeper reservoirs, the use of fewer aerators is sufficient.

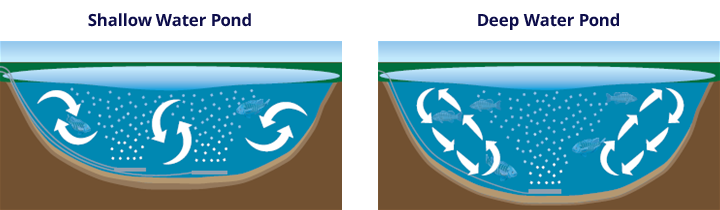

Illustration of aeration in shallow water (left) and deep water (right)
| Aerator type | Shallow Water Series™ | Pond Series™ | Lake Series™ |
| Determination | Shallow bodies of water and coastal areas up to 3 metres deep | Shallow bodies of water and coastal areas up to 6.5 metres deep | Large ponds and lakes up to 15 metres deep |
| Maximum water surface size (for one diffuser) | 2,000 m2 | 32,000 m2 | 24,000 m2 |
| Maximum depth of water surface | 3 m | 6.5m | 15 m |
| Supply voltage | 115 V or 230 V | 115 V or 230 V | 115 V or 230 V |
All Airmax® aeration systems can be installed directly on the shore of a body of water or at a distance of up to 400 metres from the shore.
Accidental Sludge Leakage
Aeration of the water reservoir was used for remediation of consequences of accidental leakage of sewage sludge into the pond.
Novorolský Pond
A set of measures has been applied to the Novorolsky Pond, which is used for recreational purposes, to ensure good water quality. These measures include the installation of floating islands and the application of UTZ and aeration.
